• P245/60R18 all-season BSW tires
• 18" painted aluminum wheels
• 17" spare tire
• Body color rear spoiler
• Black rocker moldings
• Chrome grille
• Bi-functional projector beam halogen headlamps
• Black manual-folding pwr mirrors w/integrated blind spot mirrors
• Solar tinted front door window glass
• Privacy tinted rear windows
• Intermittent speed-sensitive front windshield wipers
• Dual speed rear wiper w/washer
• Black door handles

• AM/FM stereo w/CD player -inc: MP3 playback, clock, (6) speakers, auxiliary audio input

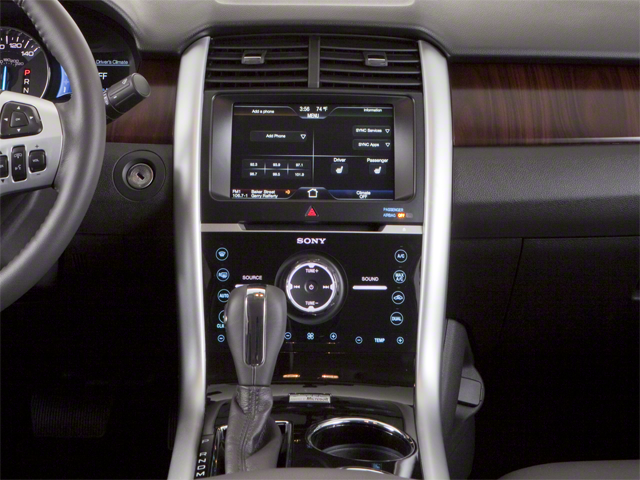

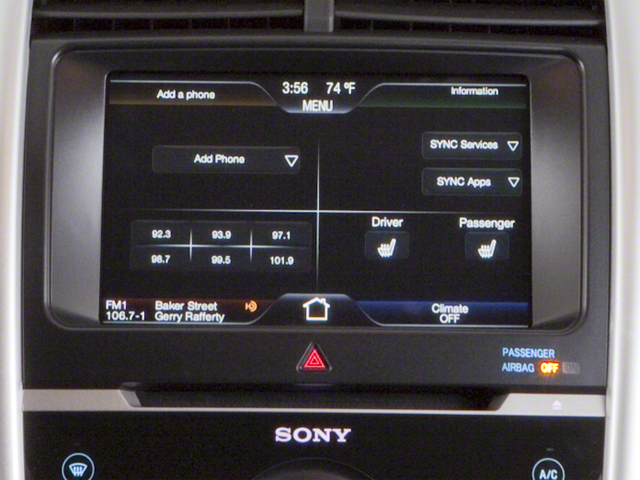

• MyFord -inc: 4.2" color LCD in instrument cluster w/odometer/trip odometer/fuel economy/trip timer/oil life/system check, 4.2" color LCD in center stack

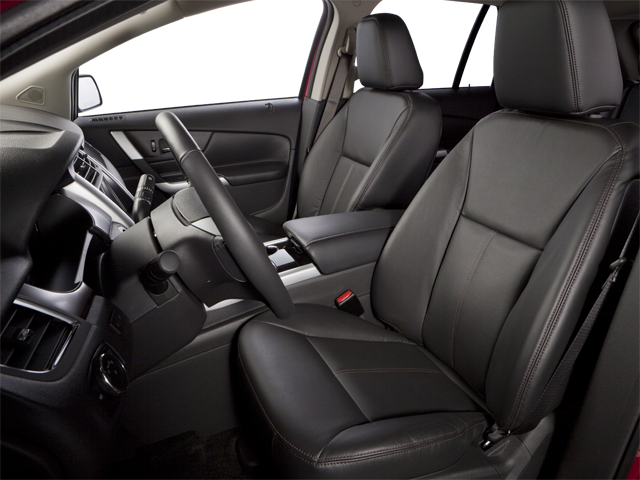

• Front cloth bucket seats w/driver manual lumbar
• Adjustable head restraints

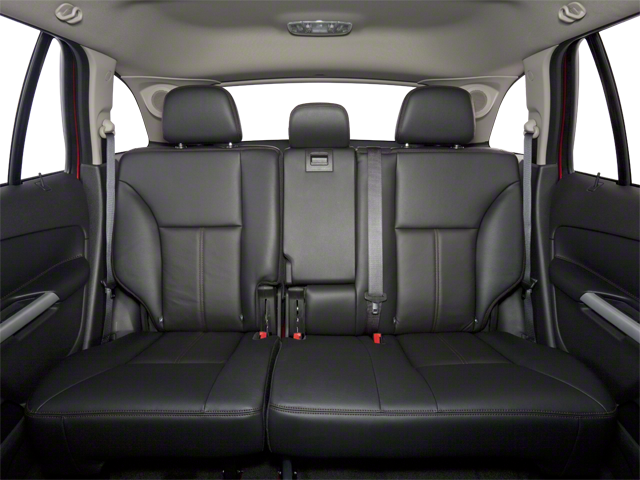

• Second row reclining 60/40 split fold-flat bench seat -inc: fold-down armrest w/(2) cupholders
• Dark slate metallic center stack finish

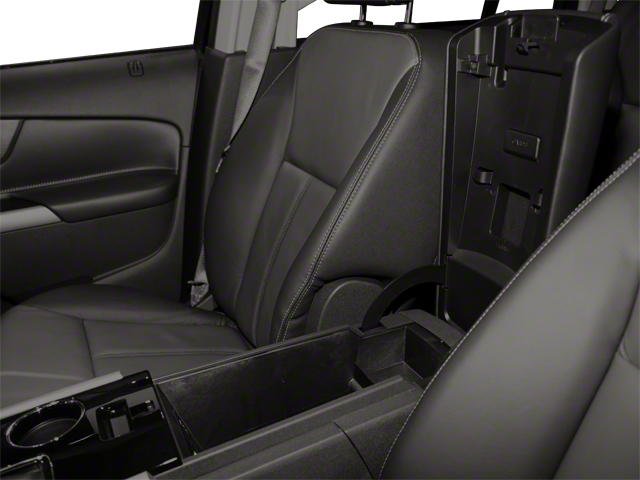

• Front center console -inc: storage tray, arm rest, deep storage bin, (2) cupholders
• Front & rear floormats

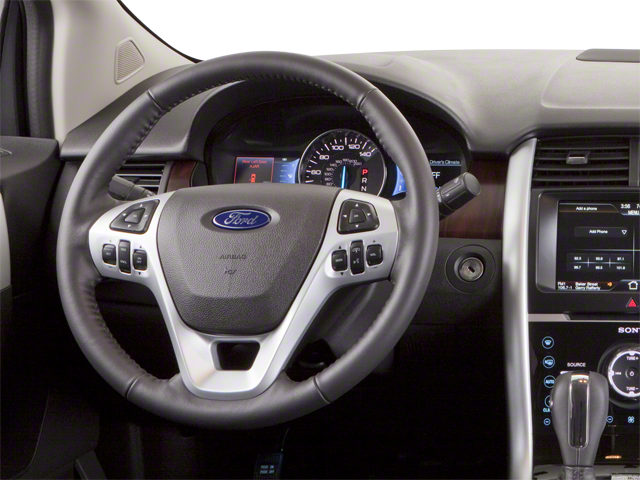

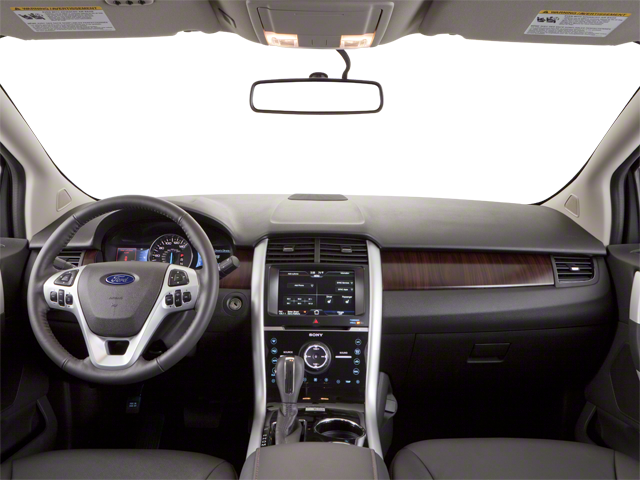

• Tilt/telescoping steering wheel -inc: cruise controls, 5-way MyFord controls, secondary audio controls
• Instrumentation -inc: tachometer

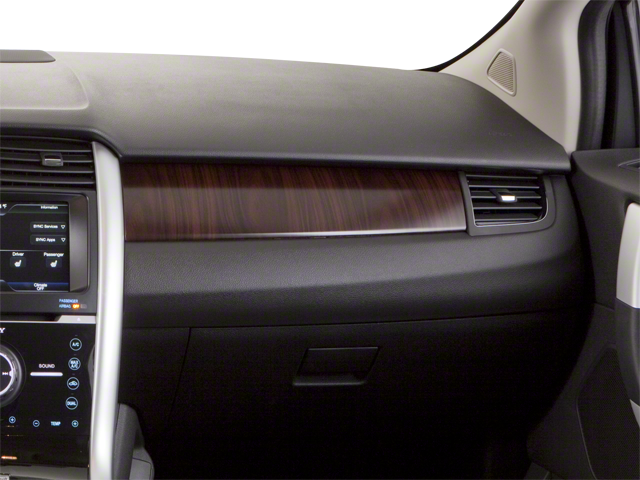

• Textured black instrument panel applique

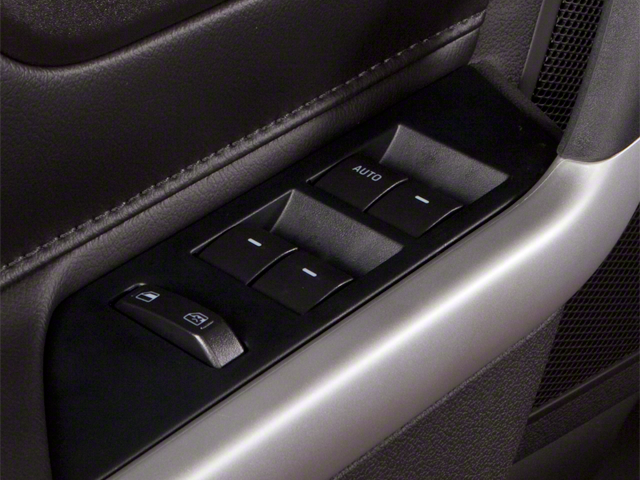

• Pwr windows w/driver one-touch up/down & front/rear disable
• Pwr locks w/Autolock
• Remote keyless entry
• Cruise control
• SecuriLock encrypted passive anti-theft system (EPATS)
• Accessory delay
• Rear window defroster
• Single-zone air conditioning

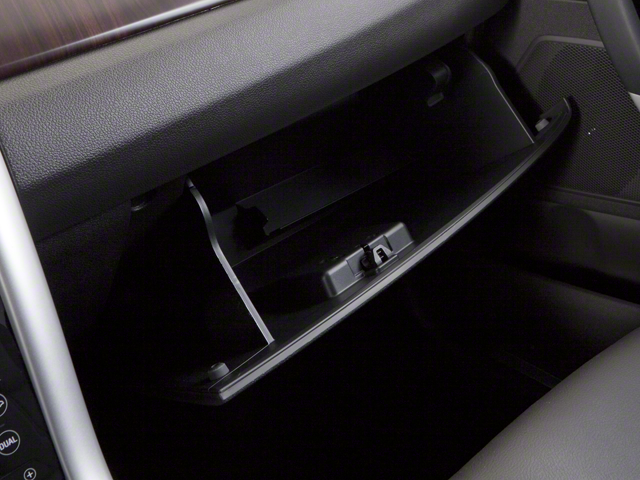

• Glove box
• (8) cup/bottle holders
• (4) 12V auxiliary pwr outlets
• Overhead console w/sunglass holder
• (2) coat hooks
• Dual sunvisors w/sliding feature
• Front & rear passenger grab handles
• Front/rear dome lights
• Illuminated entry
• Front/rear door map pockets
• Cargo area light
• Rear cargo area tie-downs/hooks/net

• 4-wheel anti-lock disc brakes
• AdvanceTrac w/roll stability control (RSC)
• Hill start assist
• Personal Safety System -inc: seatbelt pretensioners, load-limiting retractors, dual-stage front air bags, driver seat position sensing, crash severity sensing
• Occupant classification system
• S.O.S. Post Crash Alert System
• Safety Canopy for (2) rows w/rollover sensor
• Side-impact air bags
• MyKey system -inc: top speed limiter, audio volume limiter, early low fuel warning, programmable sound chimes, Beltminder w/audio mute, owner controls feature
• Height-adjustable front seatbelts w/Belt Minder
• (2) rear seat lower anchors & tethers for children (LATCH)
• Child safety rear door locks
• Tire pressure monitoring system

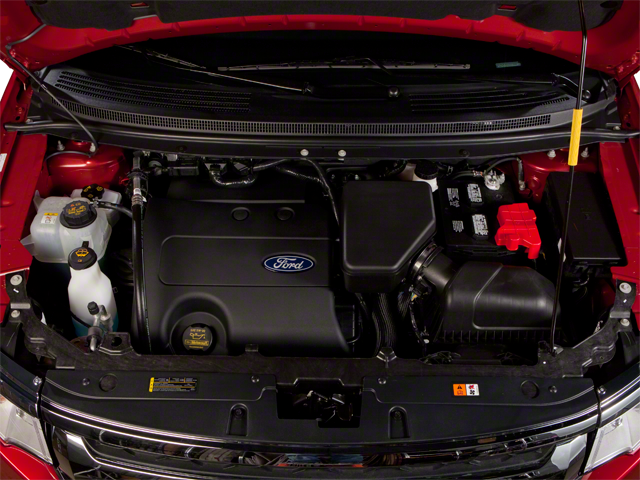

3.5L TI-VCT V6 ENGINE

• (STD)

• 471
• 66B

• Vehicle
• EPA Classification: 4WD Sport Utility Vehicle
• Mileage
• Fuel Economy Est-Combined (MPG): 21
• EPA Fuel Economy Est - City (MPG): 18
• EPA Fuel Economy Est - Hwy (MPG): 25
• Electrical
• Cold Cranking Amps @ 0° F (Primary): - TBD -
• Maximum Alternator Capacity (amps): 150
• Cooling System
• Total Cooling System Capacity (qts): - TBD -
• Weight Information
• Base Curb Weight (lbs): 4234
• Trailering
• Dead Weight Hitch - Max Trailer Wt. (lbs): 2000
• Dead Weight Hitch - Max Tongue Wt. (lbs): 200
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 2000
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 200
• Suspension
• Suspension Type - Front: MacPherson strut
• Suspension Type - Rear: Multi-link
• Shock Absorber Diameter - Front (mm): - TBD -
• Shock Absorber Diameter - Rear (mm): - TBD -
• Stabilizer Bar Diameter - Front (in): 1.3
• Stabilizer Bar Diameter - Rear (in): 0.9
• Brakes
• Brake Type: Pwr
• Brake ABS System: 4-Wheel
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): - TBD -
• Rear Brake Rotor Diam x Thickness (in): - TBD -
• Tires
• Front Tire Size: P245/60R18
• Rear Tire Size: P245/60R18
• Spare Tire Size: Compact
• Wheels
• Front Wheel Size (in): 18 x - TBD -
• Rear Wheel Size (in): 18 x - TBD -
• Spare Wheel Size (in): Compact
• Front Wheel Material: Aluminum
• Rear Wheel Material: Aluminum
• Spare Wheel Material: Steel
• Steering
• Steering Type: Pwr Rack & Pinion
• Steering Ratio (:1), Overall: 17.7
• Lock to Lock Turns (Steering): 3.1
• Turning Diameter - Curb to Curb (ft): 39.3
• Turning Diameter - Wall to Wall (ft): - TBD -
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 19.0
• Exterior Dimensions
• Wheelbase (in): 111.2
• Length, Overall (in): 184.2
• Width, Max w/o mirrors (in): 76.0
• Height, Overall (in): 67.0
• Track Width, Front (in): 65.4
• Track Width, Rear (in): 65.2
• Min Ground Clearance (in): 7.9
• Rear Door Opening Height (in): - TBD -
• Rear Door Opening Width (in): - TBD -
• Liftover Height (in): - TBD -
• Cargo Area Dimensions
• Cargo Area Length @ Floor to Seat 1 (in): - TBD -
• Cargo Area Length @ Floor to Seat 2 (in): - TBD -
• Cargo Area Length @ Floor to Seat 3 (in): - TBD -
• Cargo Area Width @ Beltline (in): - TBD -
• Cargo Box Width @ Wheelhousings (in): - TBD -
• Cargo Box (Area) Height (in): - TBD -
• Cargo Volume to Seat 1 (ft³): 68.9
• Cargo Volume to Seat 2 (ft³): 32.2
• Interior Dimensions
• Passenger Capacity: 5
• Passenger Volume (ft³): 108.4
• Front Head Room (in): 40.0
• Front Leg Room (in): 40.7
• Front Shoulder Room (in): 58.9
• Front Hip Room (in): 54.8
• Second Head Room (in): 39.3
• Second Leg Room (in): 39.6
• Second Shoulder Room (in): 58.7
• Second Hip Room (in): 56.1
• Summary

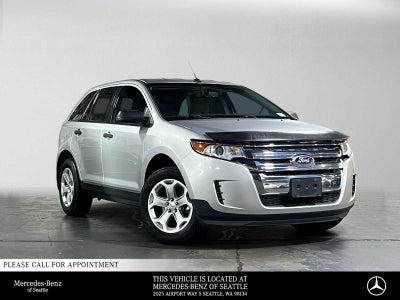

• Vehicle Name: Ford Edge
• Body Style: Sport Utility
• Emissions
• EPA Greenhouse Gas Score: 4 (2011)
• Tons/yr of CO2 Emissions @ 15K mi/year: 8.9
