• Day/night rearview mirror
• Smart Key System with Push Button Start; remote illuminated entry, remote keyless entry with lock, unlock, panic and tailgate release functions
• Power horizontal rear window with defogger and privacy glass
• Power windows with one-touch auto up/down and jam protection
• Front and rear LED maplights
• Backup camera [camera] with projected path
• Rear-seat air vents
• Fixed center console with gated shift lever, driving controls, four cup holders, and center storage bin
• Front 12V [12v] auxiliary power outlet
• Overhead console with rear window control, sunglasses storage and Safety Connect® [safety_connect_21mm]
• Front and rear assist grips

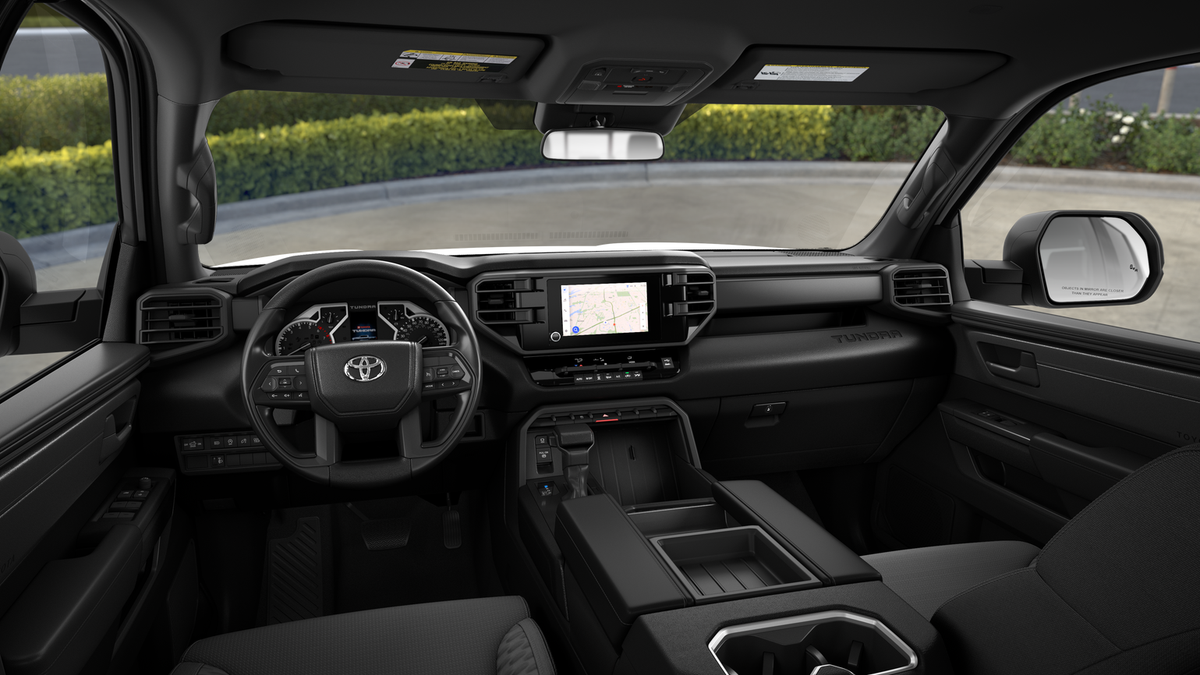

• Combination meter with analog gauges and 4.2-in. color digital gauge cluster with fuel economy, Driver Assist, vehicle/trip information, and warning messages

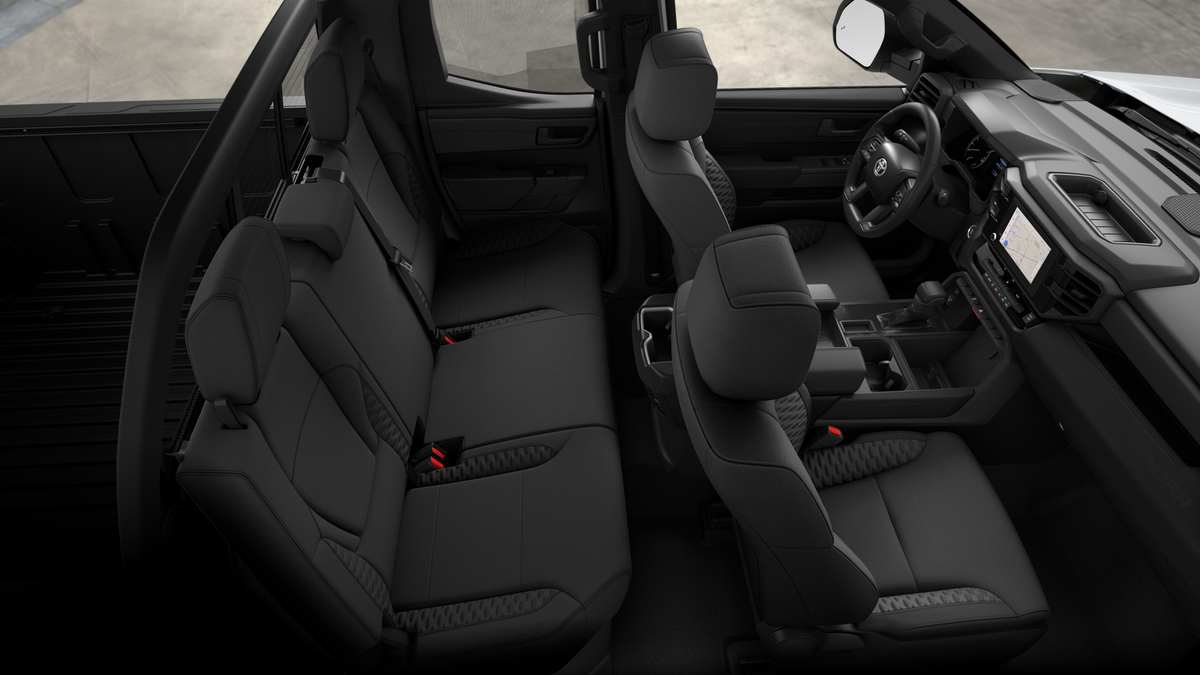

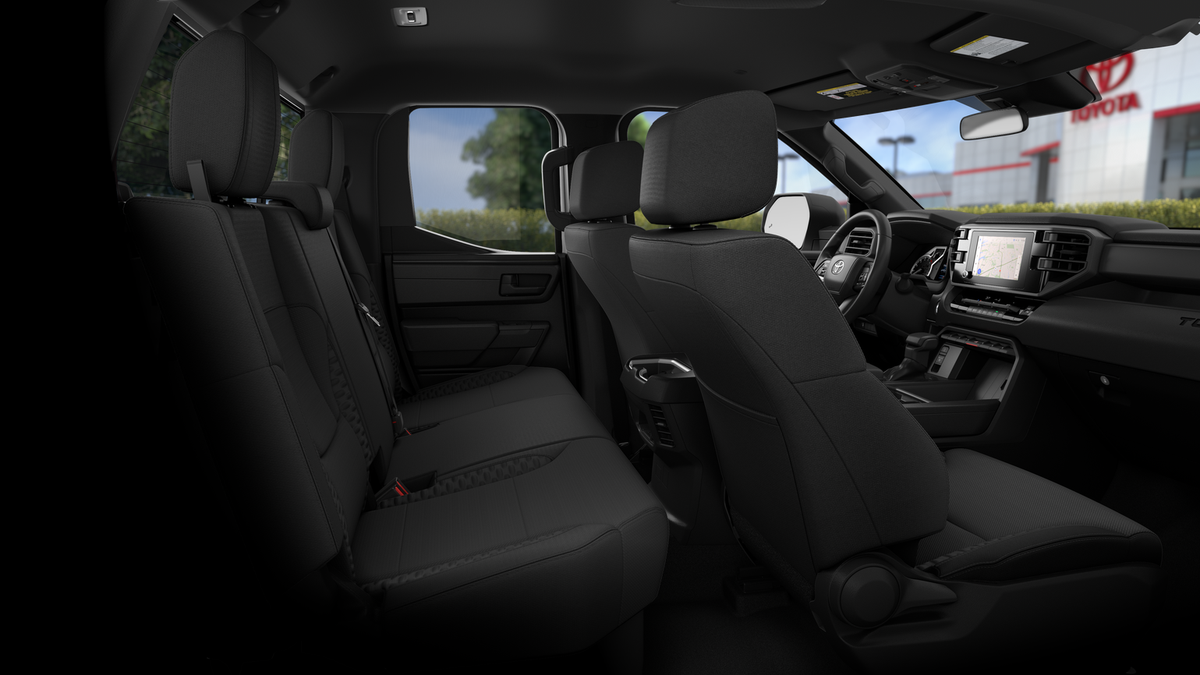

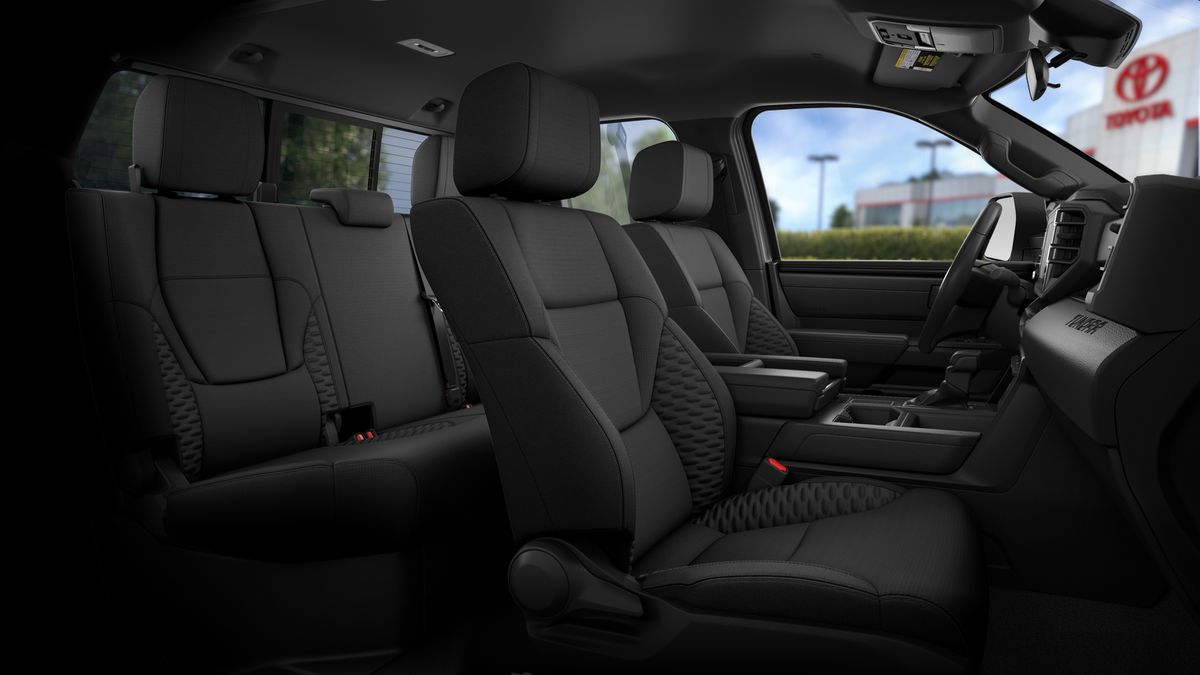

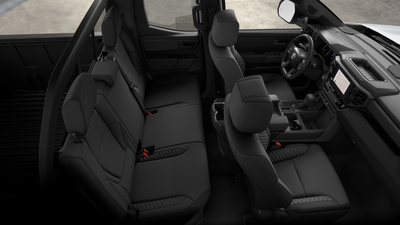

• Fabric-trimmed seats; 4-way manual adjustable driver and front passenger seats
• 60/40 split, folding rear seat
• Rear under-seat storage compartment with removable and adjustable partitions
• Single-zone automatic climate control with air filtration with S-Flow
• Polyurethane manual tilt/telescopic steering wheel with phone, audio, display/infotainment, and Driver Assist controls
• 6-speaker audio system

• Ignition System: Conventional 12V starter [12v]
• Fuel System: D-4ST direct-injection and port-injection fuel system
• Intake: Twin turbochargers with electric wastegate valve actuators and water-cooled intercooler
• Exhaust System: Stainless steel exhaust system
• Towing: Class-IV towing hitch receiver and wiring harness with 7-pin/4-pin connector [tow_no_install]
• Towing: Trailer-Sway Control (TSC) [trailer_sway_cntrl]
• Drivetrain: Rear-Wheel Drive (RWD) with Automatic Limited-Slip Differential (Auto LSD) [auto_lsd]
• Body/Frame: Fully boxed high-strength steel ladder frame
• Body/Frame: Ultra-high-strength steel cabin construction with aluminum hood and front door panels
• Suspension: Independent double-wishbone front suspension; coil spring multi-link rear suspension
• Steering: Electric Power Steering (EPS); power-assisted rack-and-pinion
• Brakes: Power-assisted, ventilated 13.9-in. front disc brakes with opposed dual-piston brake calipers; ventilated 13.6-in. rear disc brakes with single-piston calipers
• Brakes: Electronically Controlled Braking (ECB) system
• Brakes: Electric Parking Brake (EPB) [epb]

• Toyota Safety Sense™ 2.5 (TSS 2.5) [tss] Pre-Collision System with Pedestrian Detection (PCS w/PD), [pcs_pd_2] Full-Speed Range Dynamic Radar Cruise Control (DRCC), [fsdrcc] Lane Departure Alert with Steering Assist (LDA w/SA), [lda_sa] Lane Tracing Assist (LTA), [lta] Automatic High Beams (AHB), [auto_highbeam] Road Sign Assist (RSA) [rsa]
• 3-point seatbelts for all seating positions; driver-side Emergency Locking Retractor (ELR) and Automatic/Emergency Locking Retractor (ALR/ELR) on all passenger seatbelts
• Eight total airbags, including driver and passenger side, knee and curtain airbags [airbag]
• LATCH (Lower Anchors and Tethers for CHildren) includes lower anchors on all outboard second-row rear seats
• Child-protector rear door locks and power window lockout control
• Star Safety System™ — includes Vehicle Stability Control (VSC), [vsc] Traction Control (TRAC), Anti-lock Brake System (ABS) with Electronic Brake-force Distribution (EBD), Brake Assist (BA) [brake_asst] and Smart Stop Technology® (SST) [smart_stop_tech]
• Drive-Start Control (DSC)
• Hill Start Assist Control (HAC) [hac]
• Tire Pressure Monitor System (TPMS) [tpms]
• Driver and front passenger headrests

MAX SHIELD

• Maximum Shield protection plan provides interior and exterior surface protection for new and preowned vehicles.  Revolutionary protection products ensure interior protection of leather

• carpet and vinyl surfaces from stains caused by spills
• fading
• premature aging
• etc. and the high luster shine of the exterior from acid rain
• bird droppings
• tree sap
• UV rays and more!

50 State Emissions

• 50 State Emissions

SR Grade Package

• SR Grade Package

All-Weather Floor Liners

• Engineered to precisely fit your Tundra and made from durable
• weather-resistant material.
  • Liners feature channels to better hold moisture

• Mileage
• Fuel Economy Est-Combined (MPG): 20 (2025)
• EPA Fuel Economy Est - City (MPG): 18 (2025)
• EPA Fuel Economy Est - Hwy (MPG): 23 (2025)
• Weight Information
• Base Curb Weight (lbs): 5095
• Gross Vehicle Weight Rating Cap (lbs): 7035
• Gross Combined Wt Rating (lbs): 15204
• Trailering
• Dead Weight Hitch - Max Trailer Wt. (lbs): 5000
• Dead Weight Hitch - Max Tongue Wt. (lbs): 500
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 8300
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 830
• Maximum Trailering Capacity (lbs): 8300
• Suspension
• Suspension Type - Front: Double Wishbone
• Suspension Type - Rear: Multi-Link
• Axle Type - Front: Independent
• Axle Type - Rear: Rigid Axle
• Axle Ratio (:1) - Front: 3.31
• Axle Ratio (:1) - Rear: 3.31
• Brakes
• Brake Type: 4-Wheel Disc
• Brake ABS System: 4-Wheel
• Brake ABS System (Second Line): 4-Wheel
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 13.9
• Rear Brake Rotor Diam x Thickness (in): 13.6
• Tires
• Front Tire Size: P245/75TR18
• Rear Tire Size: P245/75TR18
• Spare Tire Size: Full-Size
• Wheels
• Front Wheel Size (in): 18 X 7.5
• Rear Wheel Size (in): 18 X 7.5
• Spare Wheel Size (in): Full-Size
• Front Wheel Material: Styled Steel
• Rear Wheel Material: Styled Steel
• Spare Wheel Material: Steel
• Steering
• Steering Type: Rack-Pinion
• Turning Diameter - Curb to Curb (ft): 48.6
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 32.2
• Exterior Dimensions
• Wheelbase (in): 145.7
• Length, Overall (in): 233.6
• Width, Max w/o mirrors (in): 80.2
• Height, Overall (in): 78
• Ground Clearance, Front (in): 9.3
• Ground Clearance, Rear (in): 9.3
• Cargo Area Dimensions
• Cargo Box Length @ Floor (in): 77.6
• Cargo Box Width @ Top, Rear (in): 58.7
• Cargo Box Width @ Floor (in): 58.7
• Cargo Box Width @ Wheelhousings (in): 48.7
• Cargo Box (Area) Height (in): 20.9
• Interior Dimensions
• Passenger Capacity: 5
• Front Head Room (in): 41
• Front Leg Room (in): 41.2
• Front Shoulder Room (in): 65
• Front Hip Room (in): 62.6
• Second Head Room (in): 38.5
• Second Leg Room (in): 33.3
• Second Shoulder Room (in): 63.4
• Second Hip Room (in): 60.5
• Summary

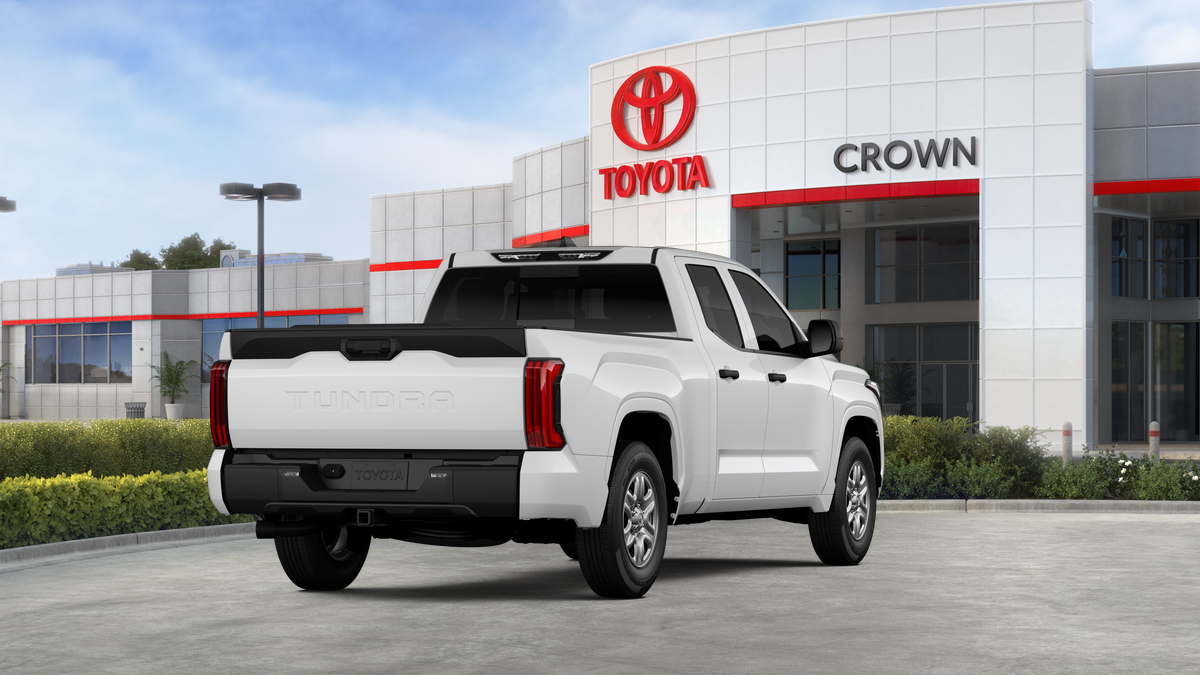

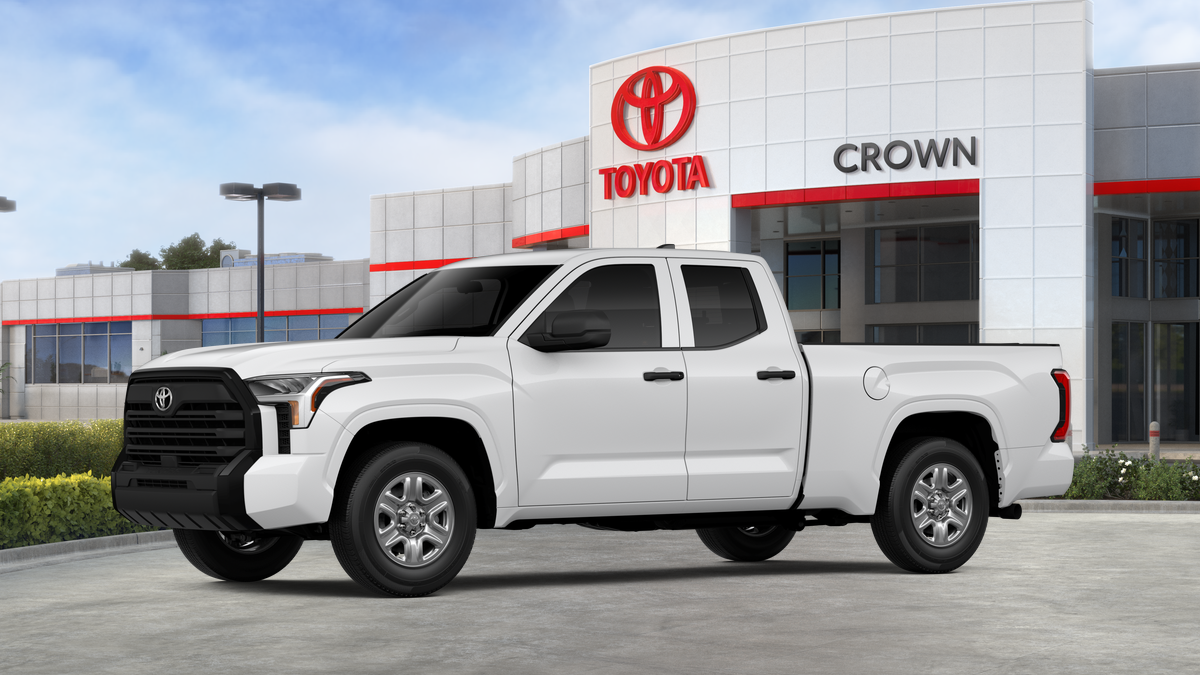

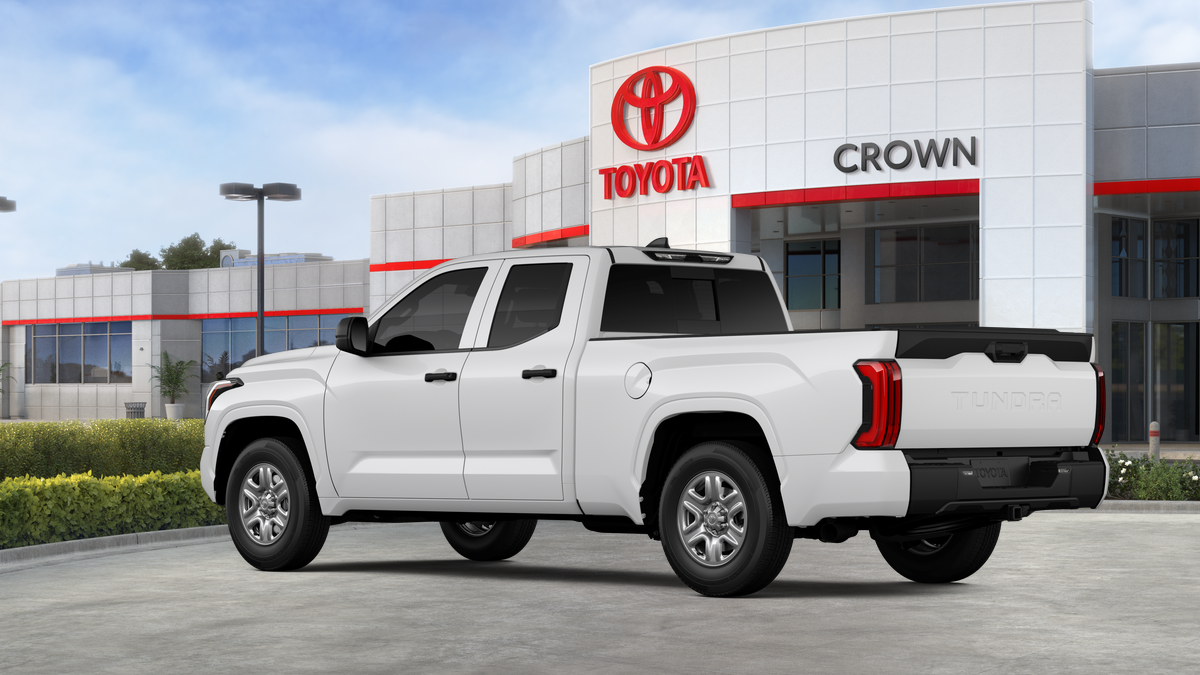

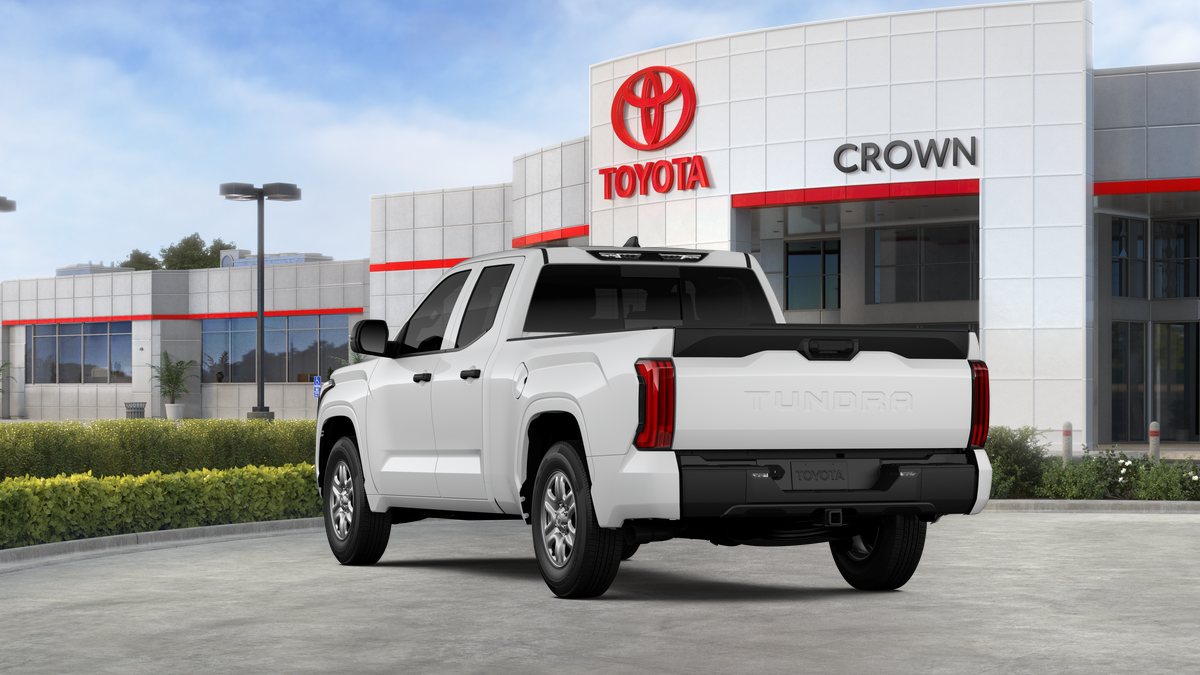

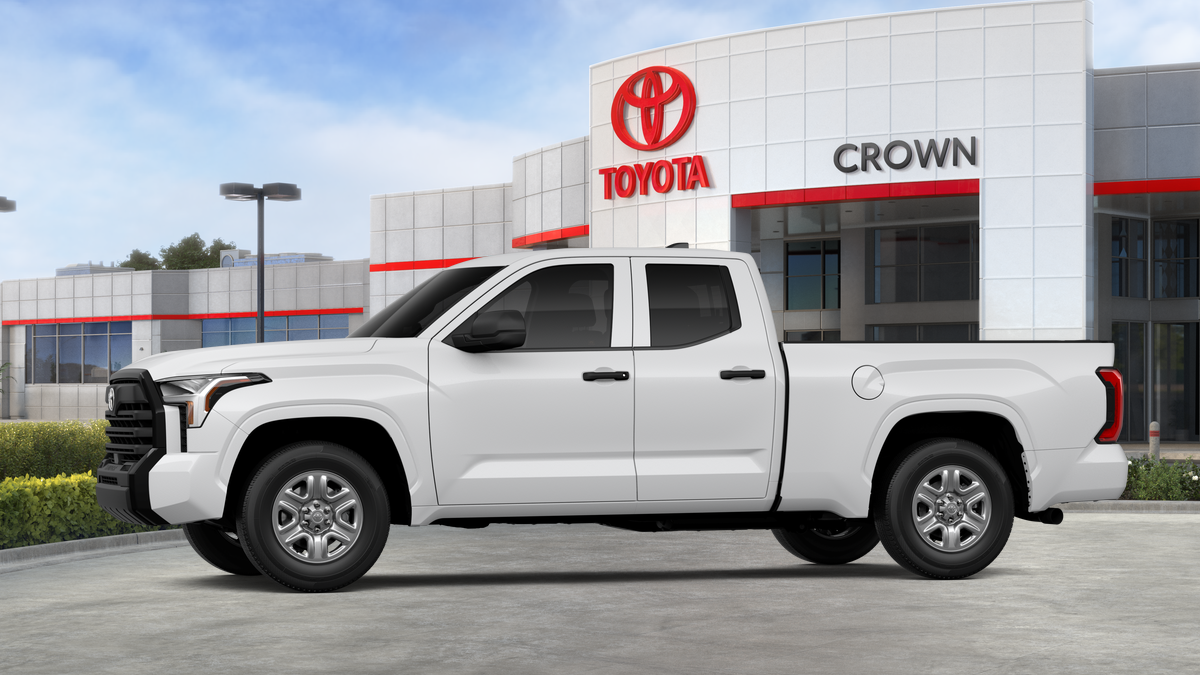

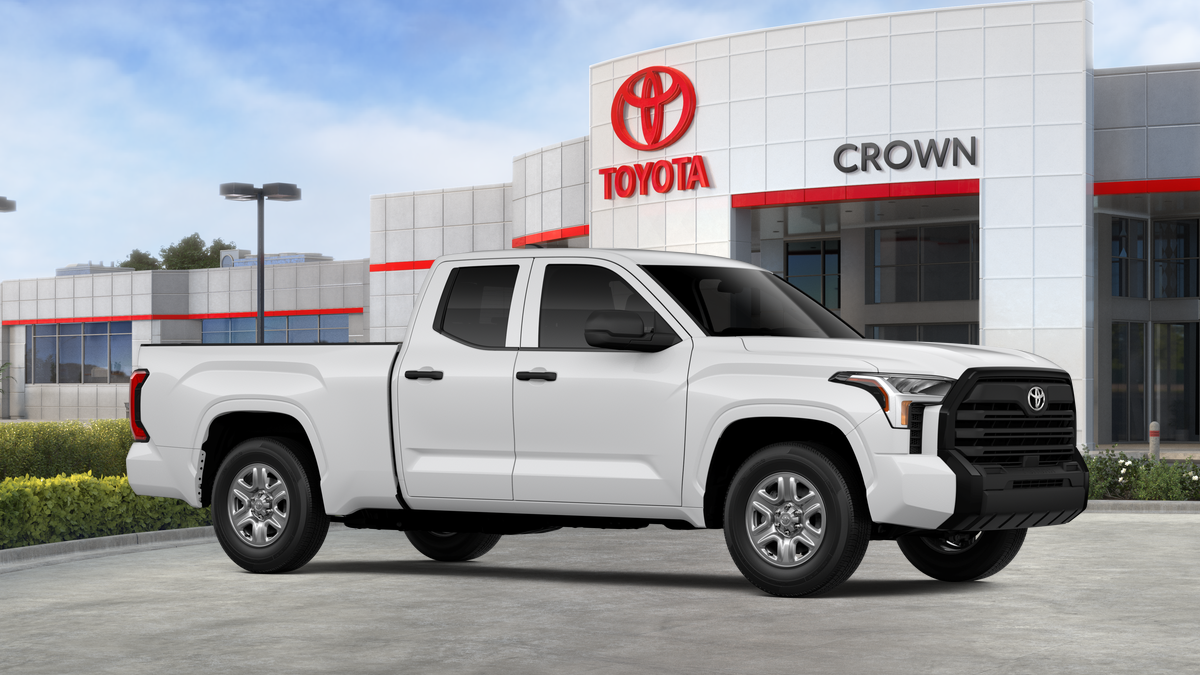

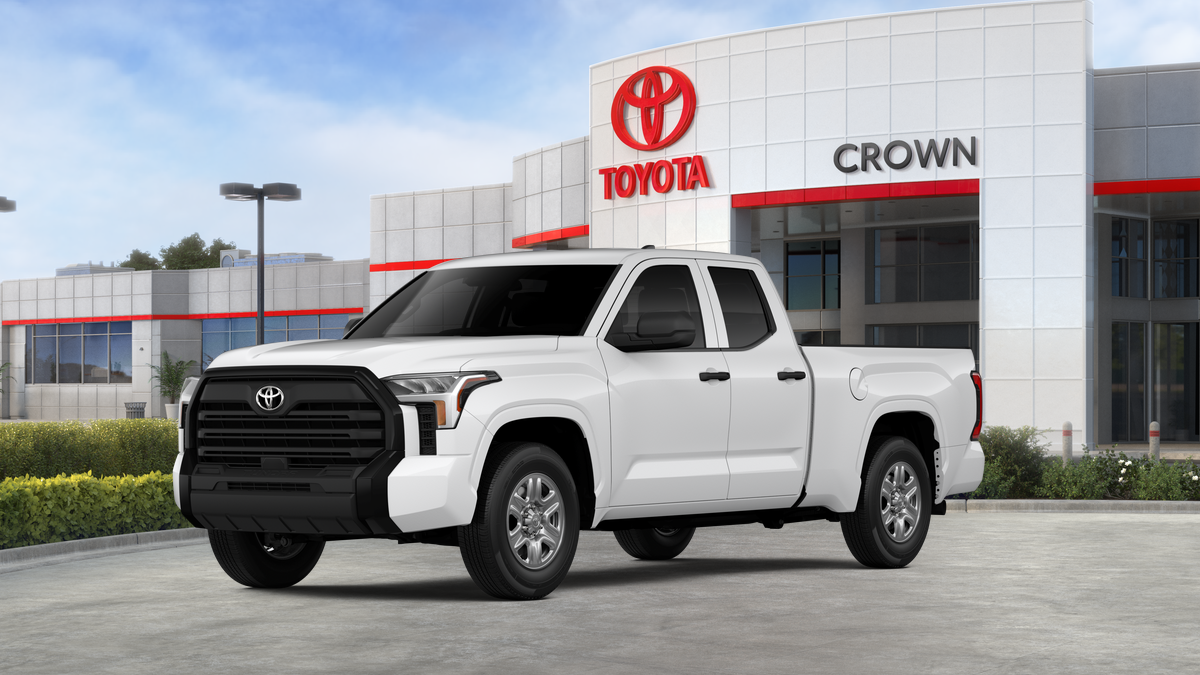

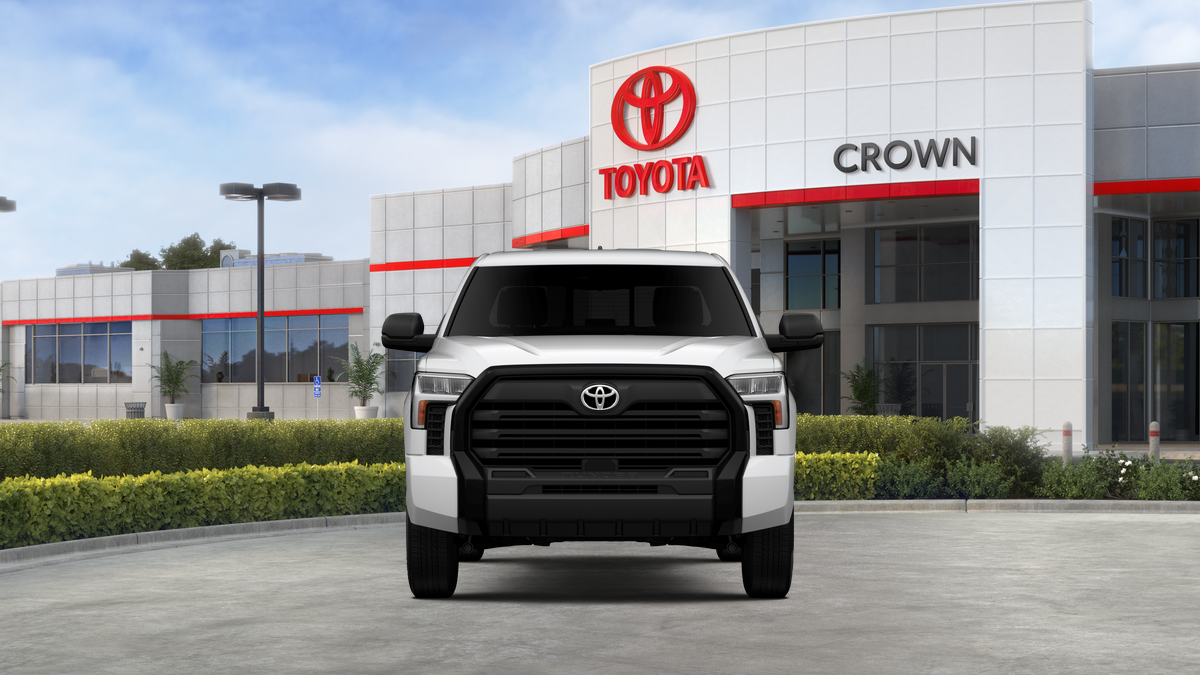

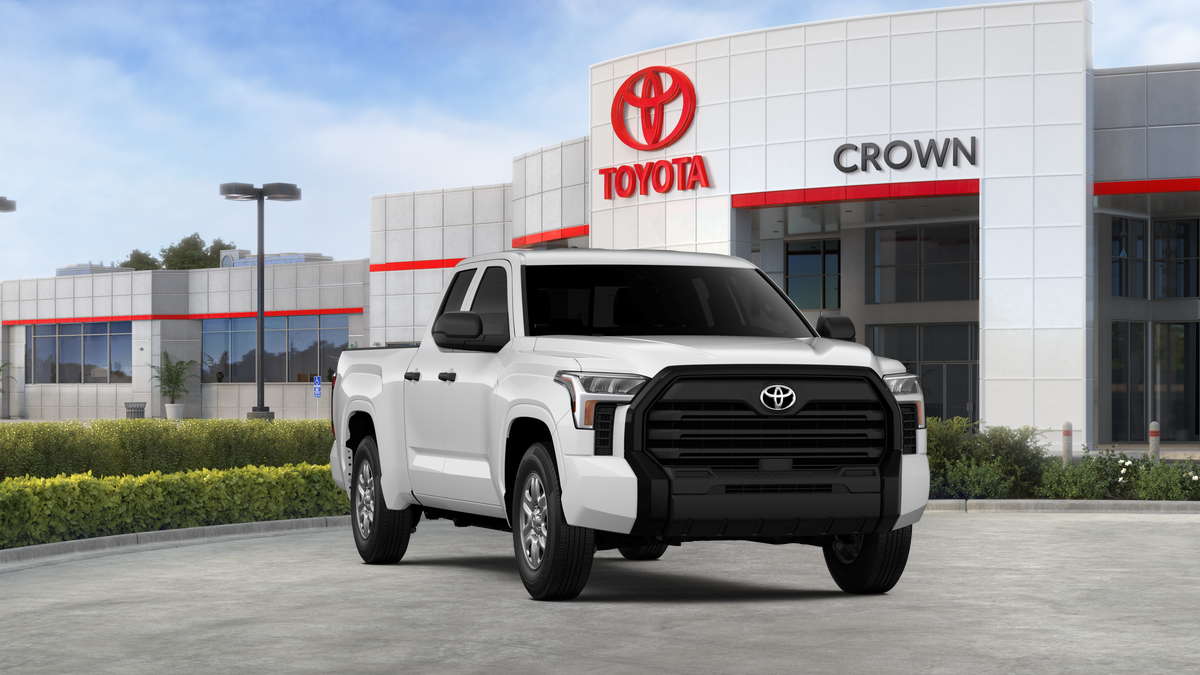

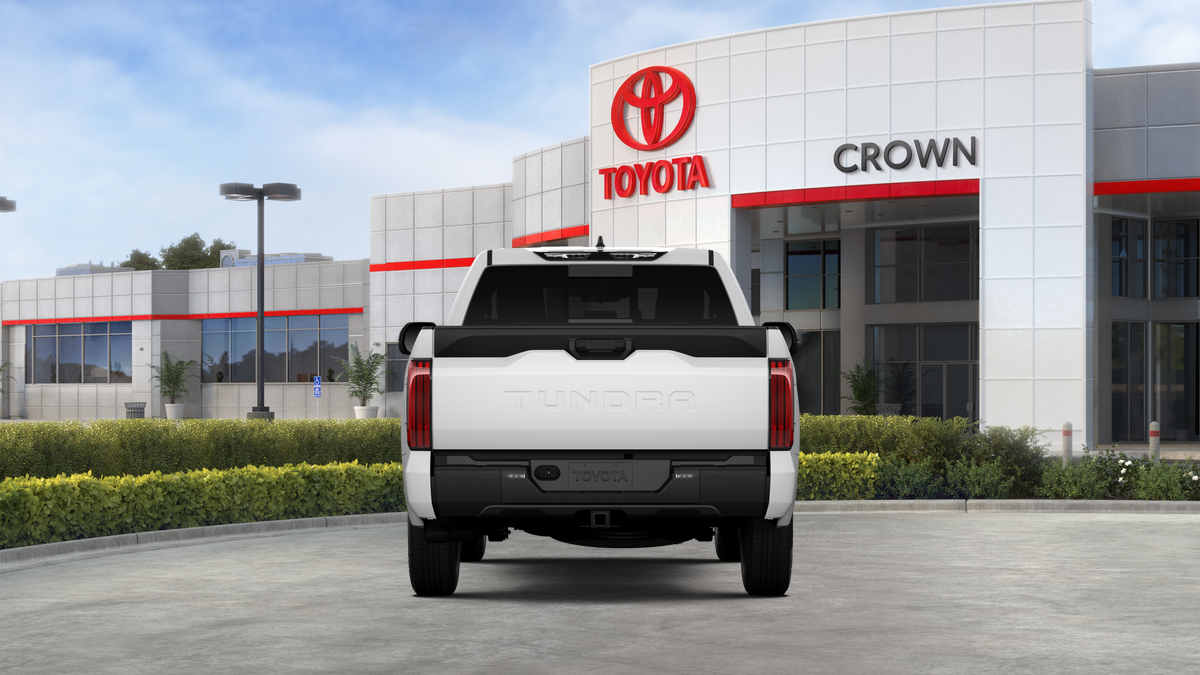

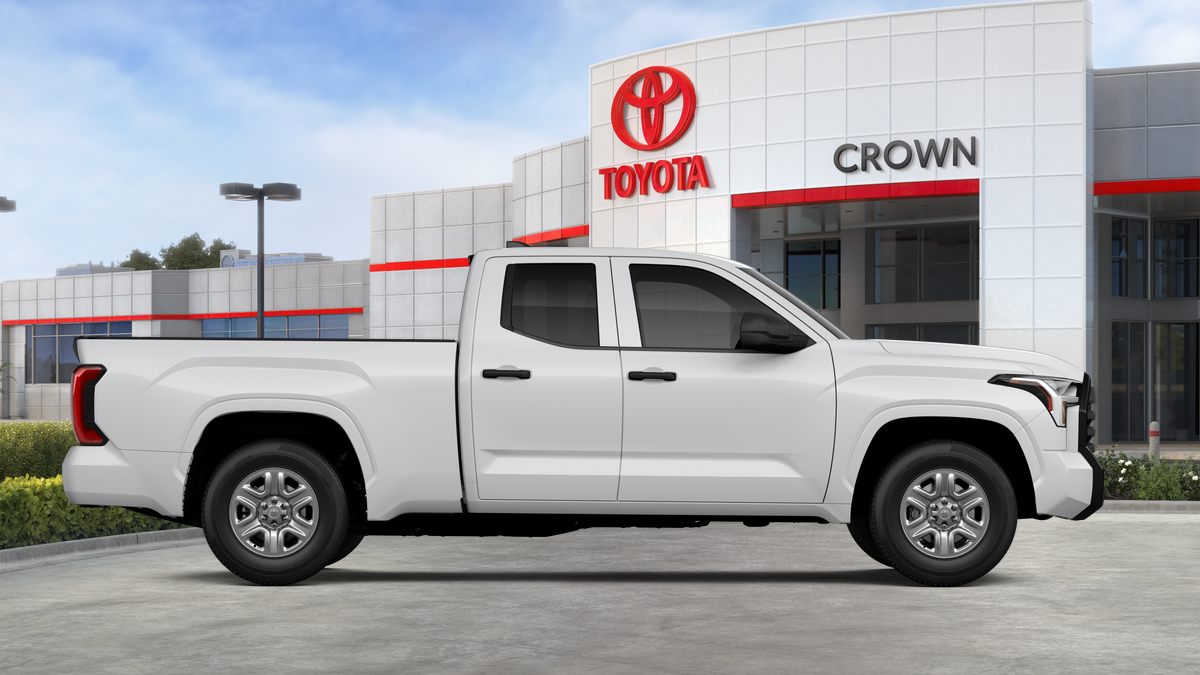

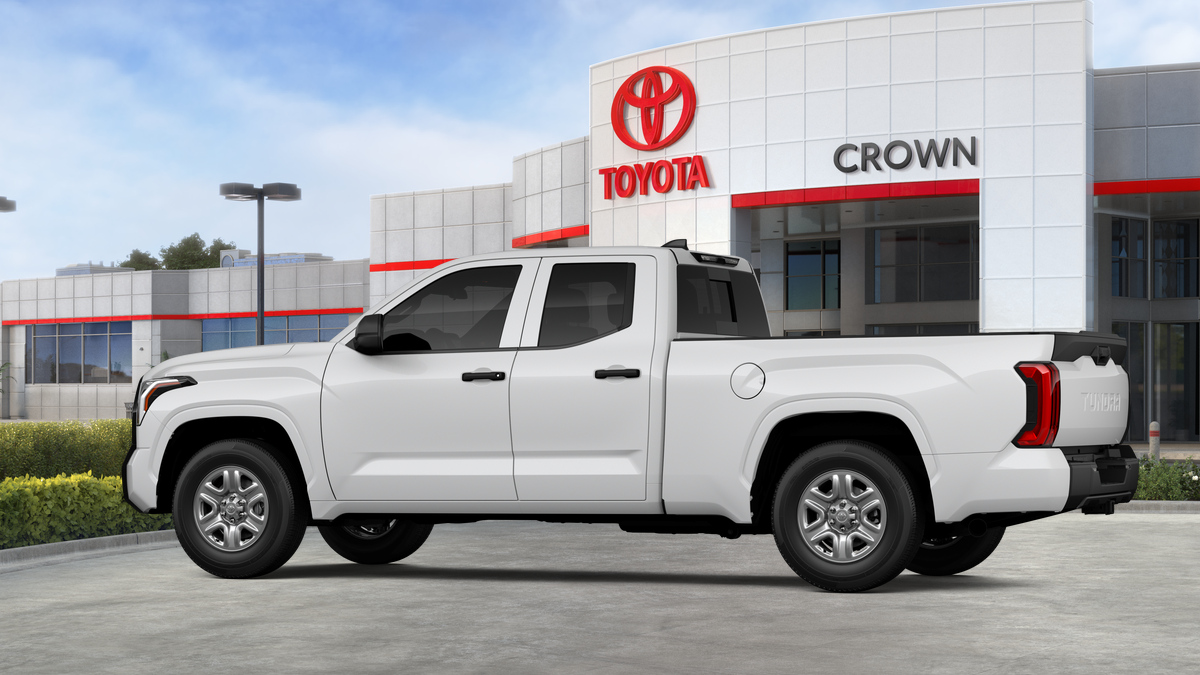

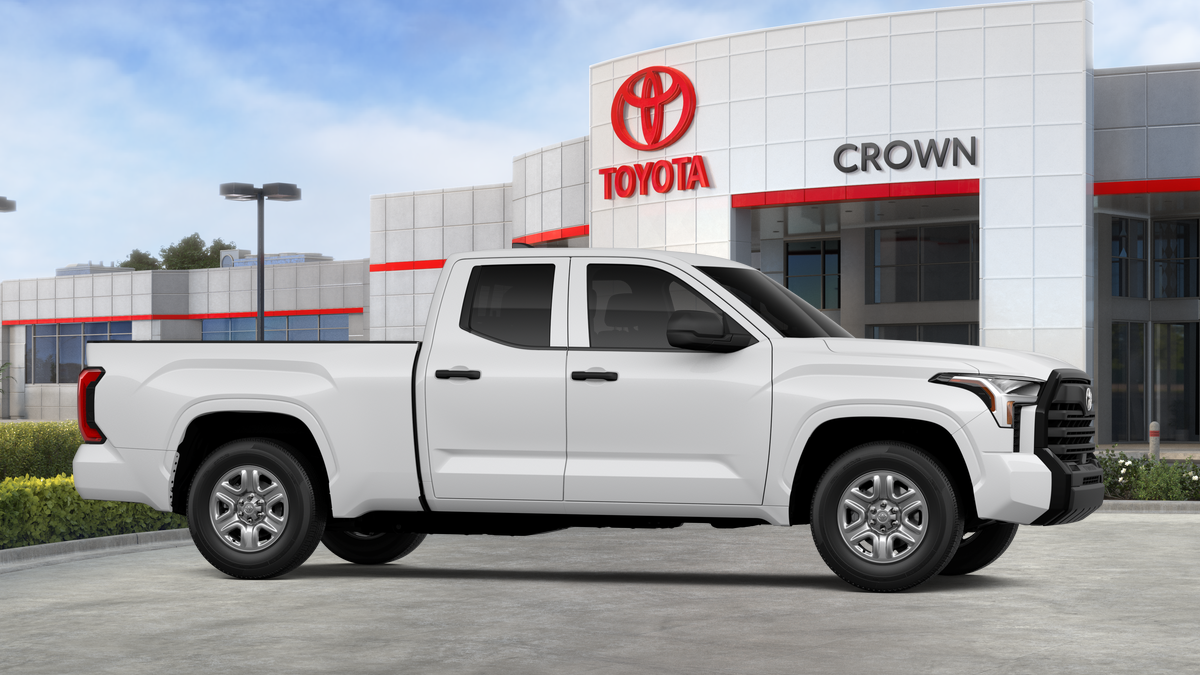

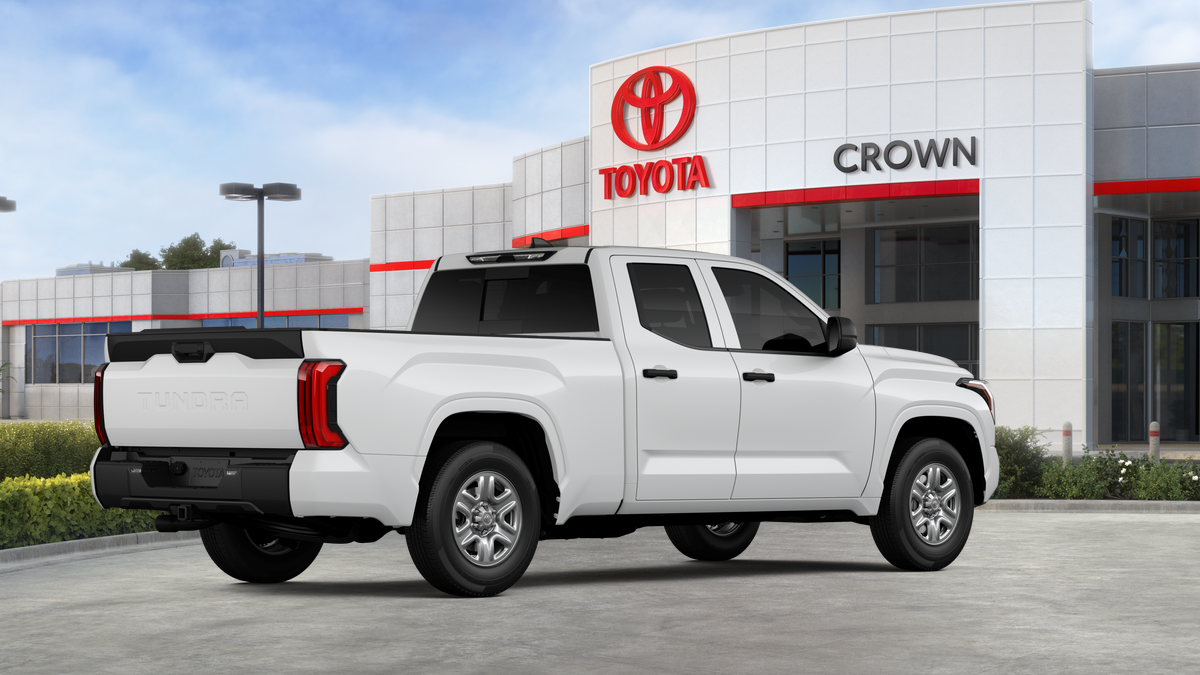

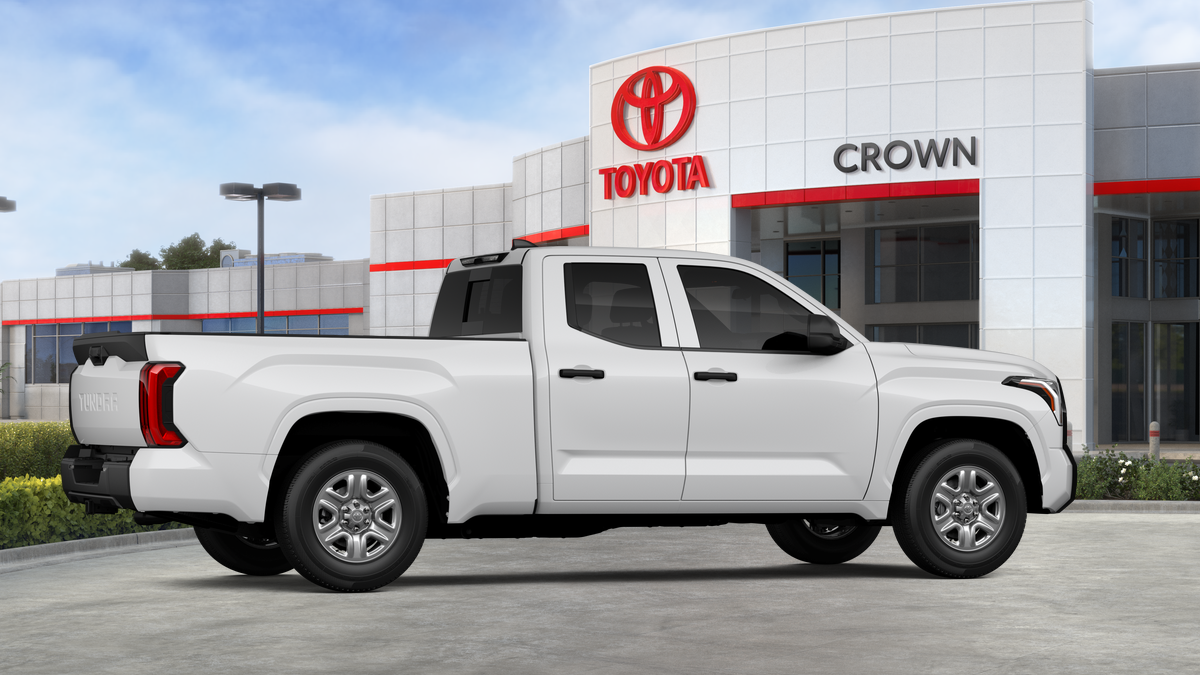

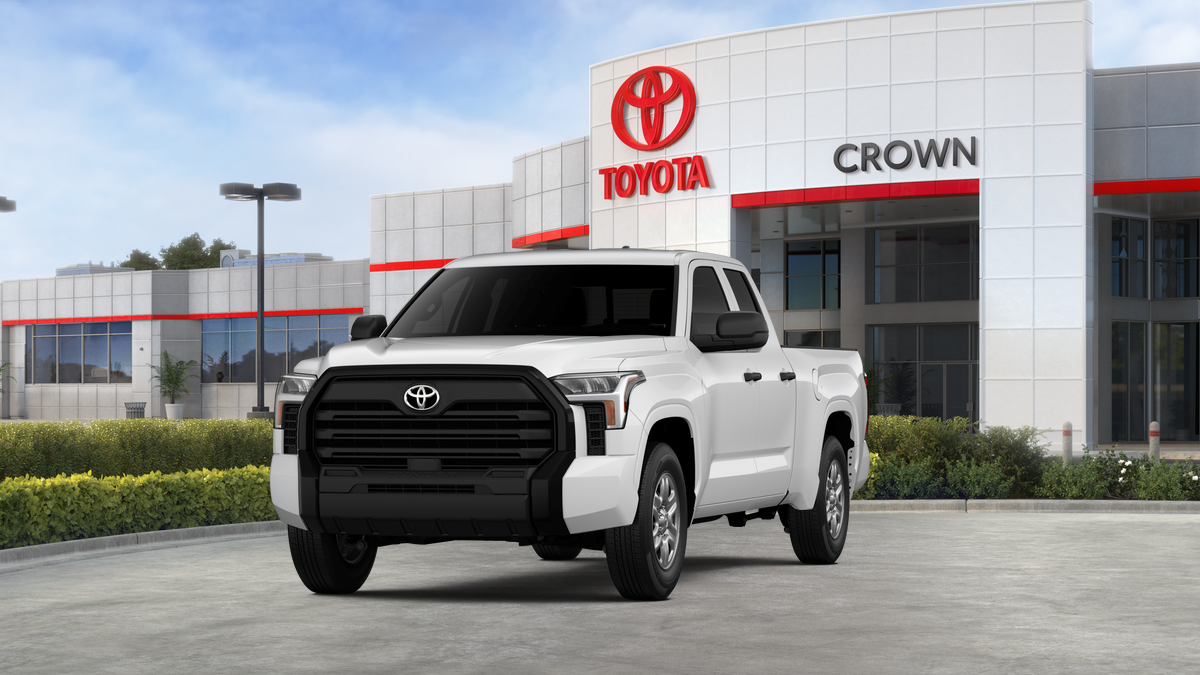

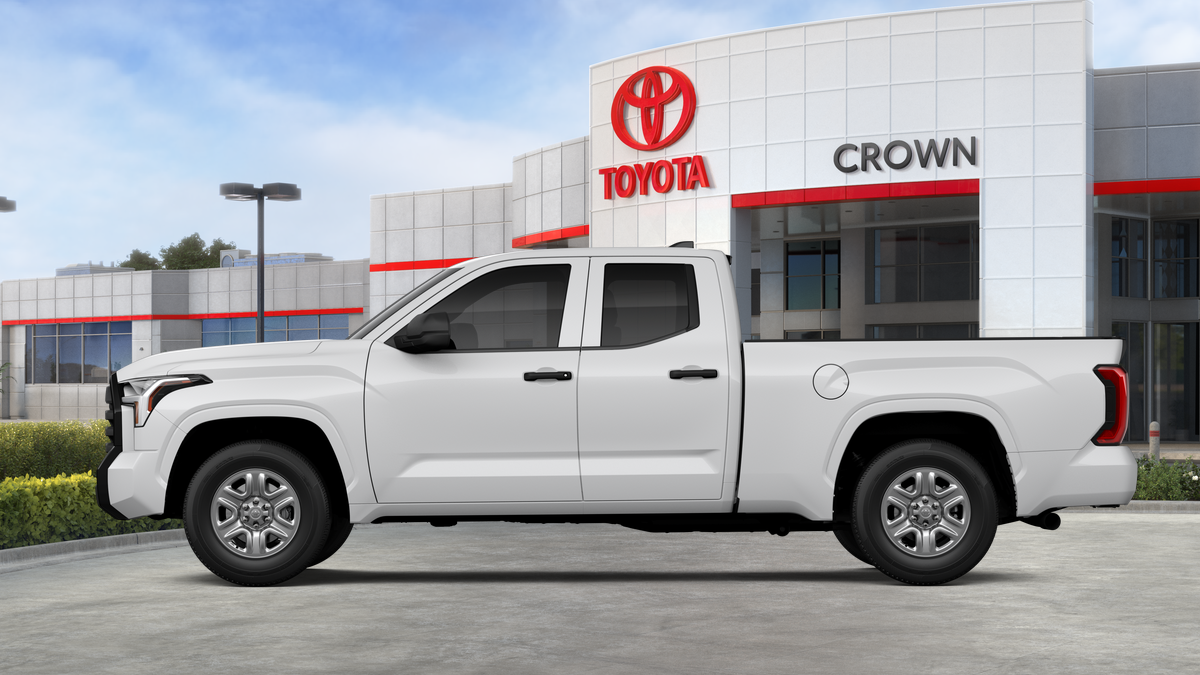

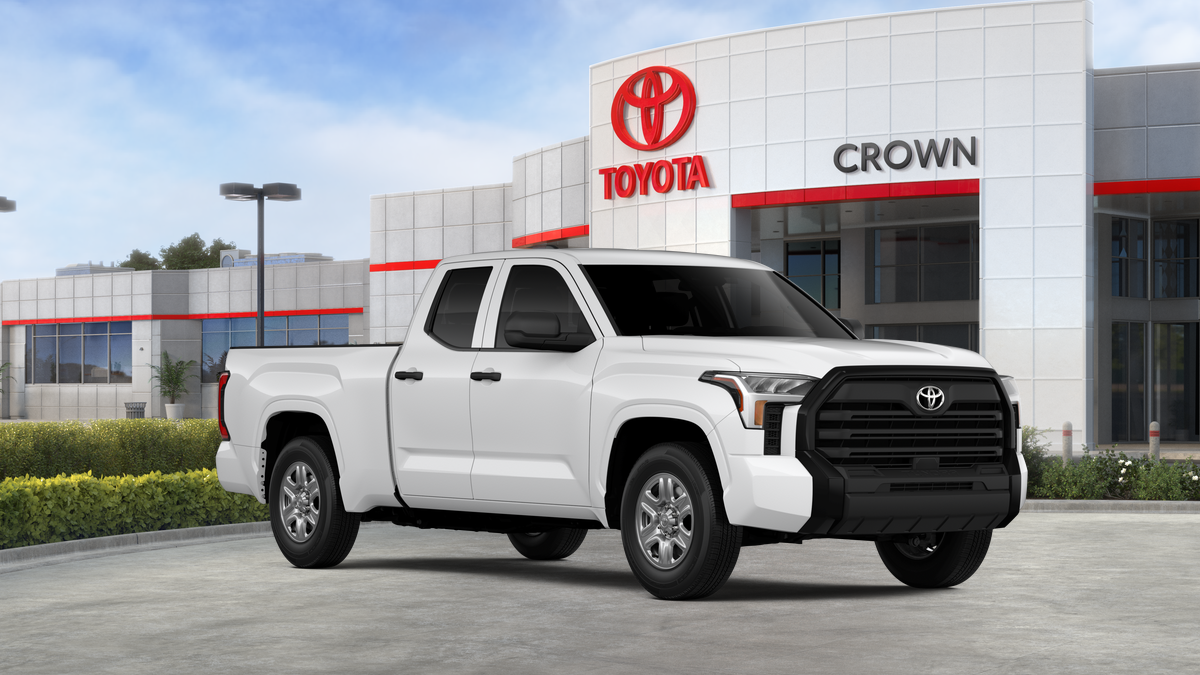

• Vehicle Name: Toyota Tundra 2WD
• Body Style: Double Cab
• Body Code: T
• Emissions
• Tons/yr of CO2 Emissions @ 15K mi/year: 8.8 (2025)
